STEP 1
Dig the ground and make a trench 35 - 40 cm wide and 55 - 60 cm deep. The bottom of the trench should be as flat as possible.

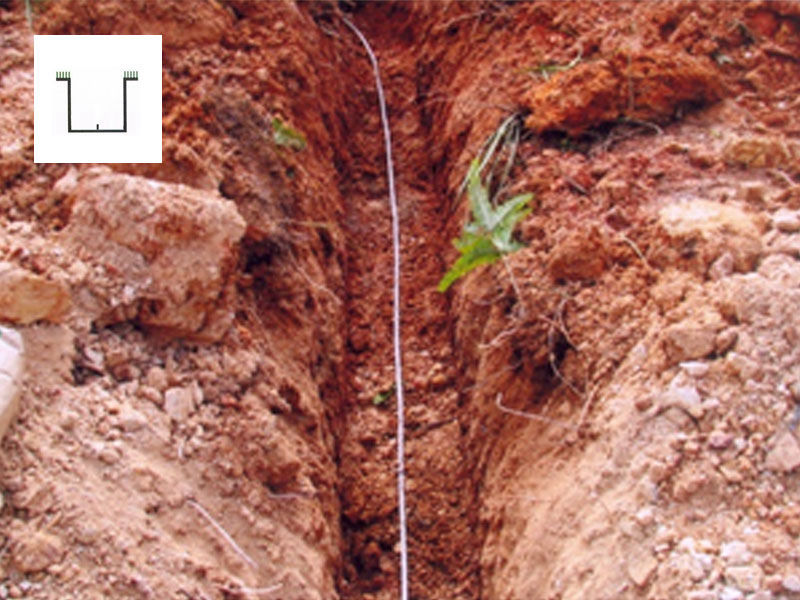

STEP 2
Lay the conductor wire in the middle of trench. Where the wire goes to the surface, it should be insulated with San Earth to prevent corrosion.

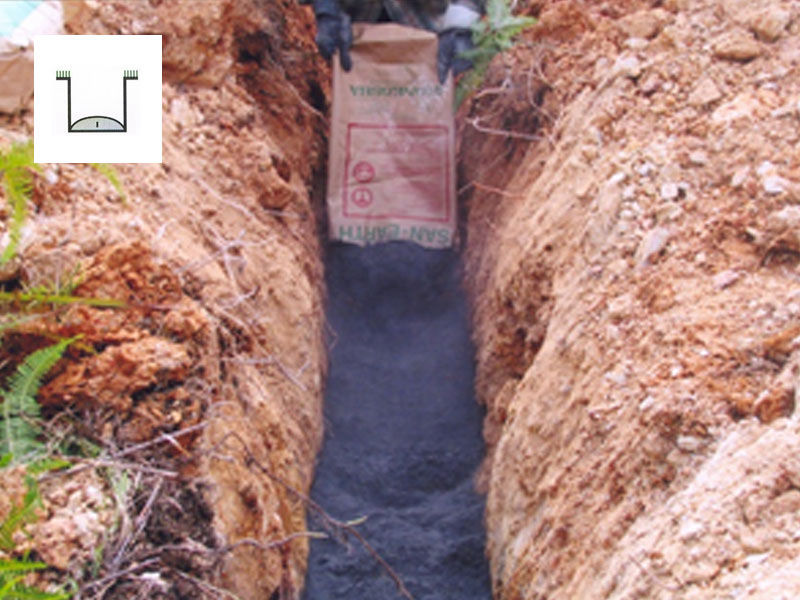

STEP 3
Spread SAN-EARTH M5C (as a dry powder) uniformly in the trench over and around the conductor by slowly dragging the bag along its length.
STEP 4
One bag of 25kg SAN-EARTH will cover 2.5 – 3 meter in length.
STEP 5
After emptying 1 bag, open the other bag and repeat the above.

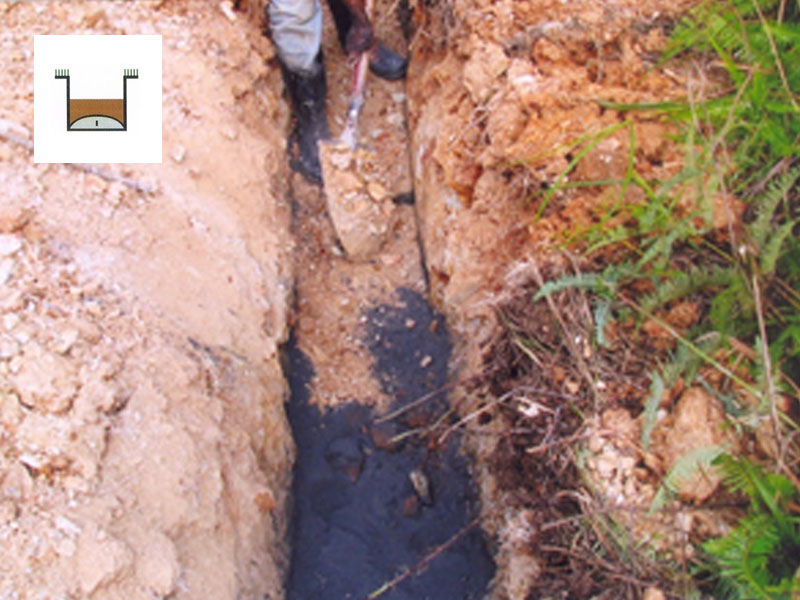

STEP 6
Carefully cover the SAN-EARTH with soil to depth of about 10cm. Make sure the wire do not get exposed during this step.

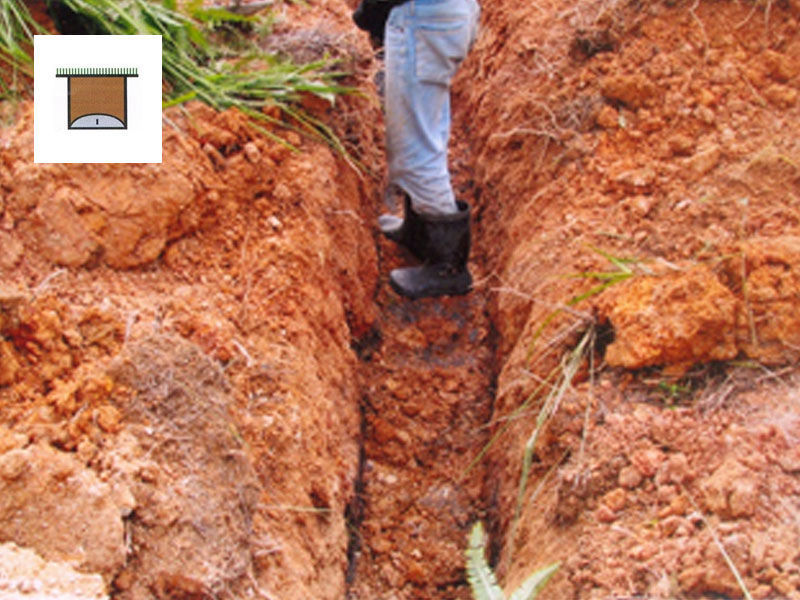

STEP 7
Fully Backfill the trench with soil and tamp down until firmly packed.

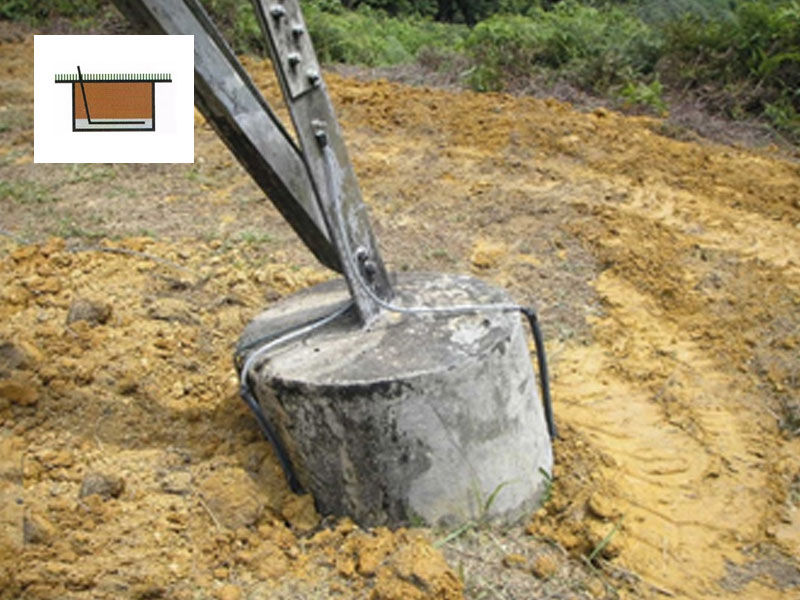

STEP 8
Connect the conductor to terminal.
STEP 9
Installation Complete
